OEM Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor

Our products are central parts of household, industrial vacuum cleaners,
spray guns, hair dryers, garden tools.
  • Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor
  • Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor
  • Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor
  • Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor
  • Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor
Wet and dry vacuum cleaner motor

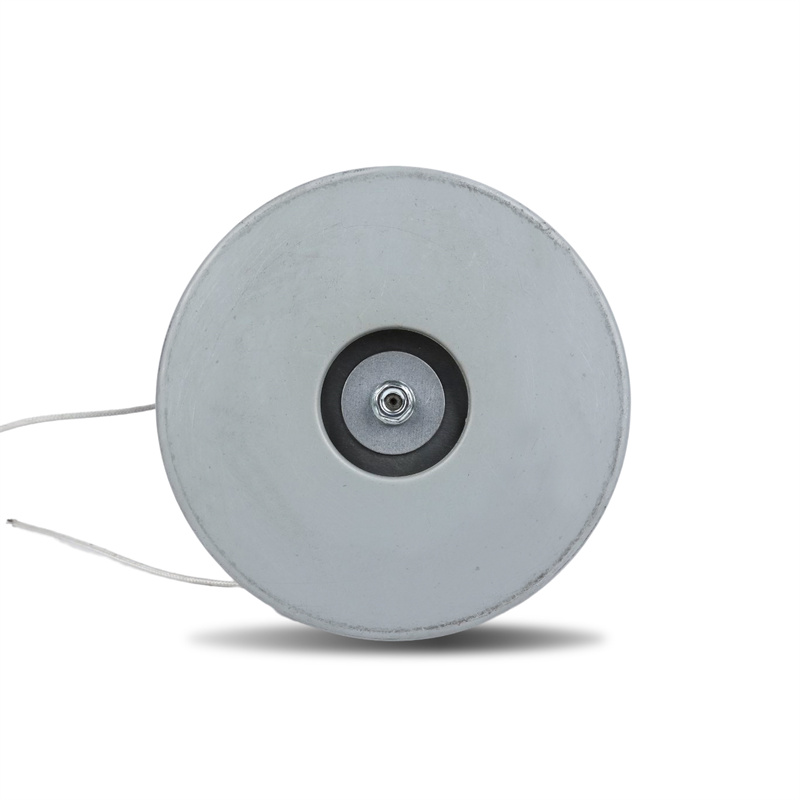

Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor

  • 300G 600G 700G loader universal motor, wet and dry, with four positioning holes, engineering plastics, strong and resistant to drops, large density pure copper coil, high-quality bearing resistance is small, vacuum and air volume are high

Product feature

  1. Parameters-Industrial Vacuum Cleaner Motor, universal for 300G 600G 700G, model no. YH-(PR-YLC), input voltage110V to 240V, rated input power 1200-1800watt, max rpm 22000r/min, rated frequency 50/60Hz, max vacuum degree 35kpa, max air flow 4.8M3/min, temperature rise 75K, noise 92-96dB, spark less than 1, class of insulation e, max efficiency 35%.
  2. 1600Watt carbon brush vacuum cleaner, pure copper core, low noise operation, high precision rotor, the eccentricity is less than 0.1mm, running smoothly  . silicon steel stator with protective paint, all-copper high-precision rotor, and sufficient pure copper wire turns.
  3. Wide range of uses, suitable for various brands of 300G 700G 800G separate, top feeder equipment.

Product Specification

Patameters/Models

YH-(PR-YLC)

Tolerance Value

Product diameter(mm)

 144.4

/

Product height (mm )

176.5

/

Rated voltage(V)

100-240

/

Rated frequency(Hz)

50/60

/

Rated input power(W)

1200-1800

+10% -10%

Max vacuum degree(KPa)

26-35

-5%

Max air flow(M3/min)

3.2-4.8

-8%

Temperature rise(K)

≤75

/

Noise(dB)

92-96

/

Spark

<Level 1

/

Class of insulation

A.B.E.F

/

Max efficiency

≥35%

-10%

Product drawing

About us

Zhoushan YeHao Electrical Appliance Co., Ltd is located in the beautiful Zhoushan Islands. Its predecessor, Suzhou PowerX Motors Co., Ltd., was established in 2002, specializing in various vacuum motors for 20 years The products are sold all over the world. With the continuous development of the market and the rapid growth of business volume, with an area of 15,680 square meters and an annual output of 12 million units, Sales amount 600 million.

YeHao as professional China Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor and Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor factory, we offer custom Doublelayer Fan Blade Motor, Feeder 700g Vacuum Cleaner Motor for sale at wholesale price. Our company has set its strategic objective which is “ high quality , High precious ,Best Service ”.We improve products with technology and take innovation as the goal of development in order to design, manufacture and produce various types of motors for the market. The company passed ISO9001 and products also got CCC, CE, ROHS, REACH and other related certifications.
