109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor Custom

Our products are central parts of household, industrial vacuum cleaners,
spray guns, hair dryers, garden tools.
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
Wet and dry vacuum cleaner motor

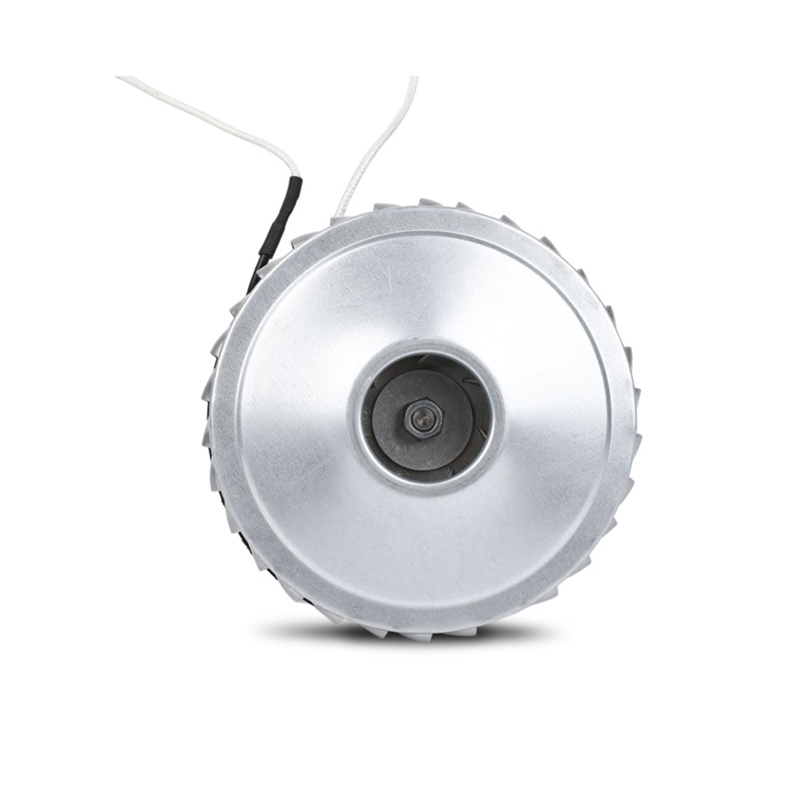

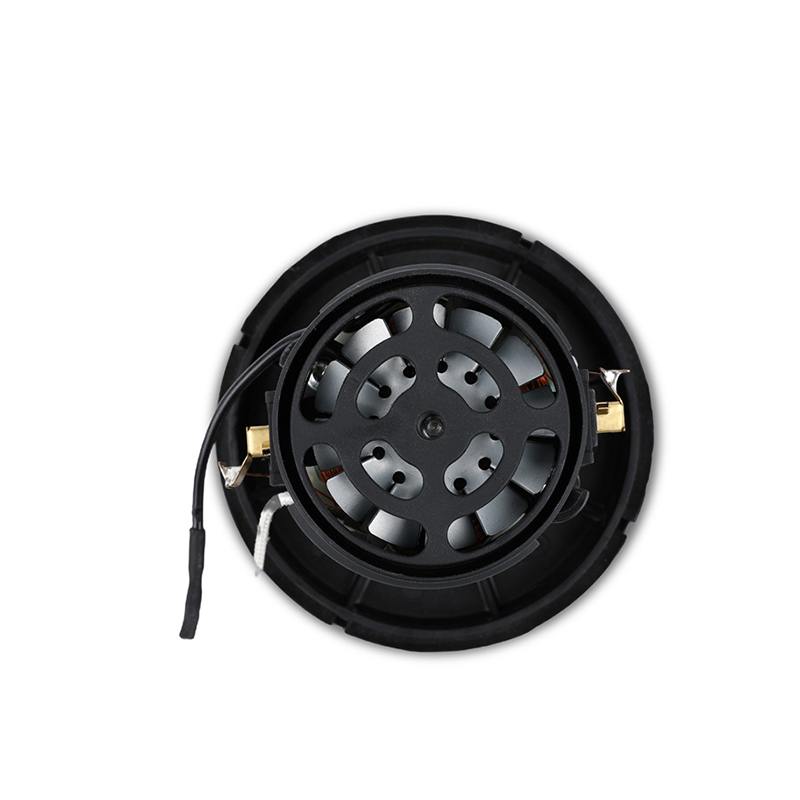

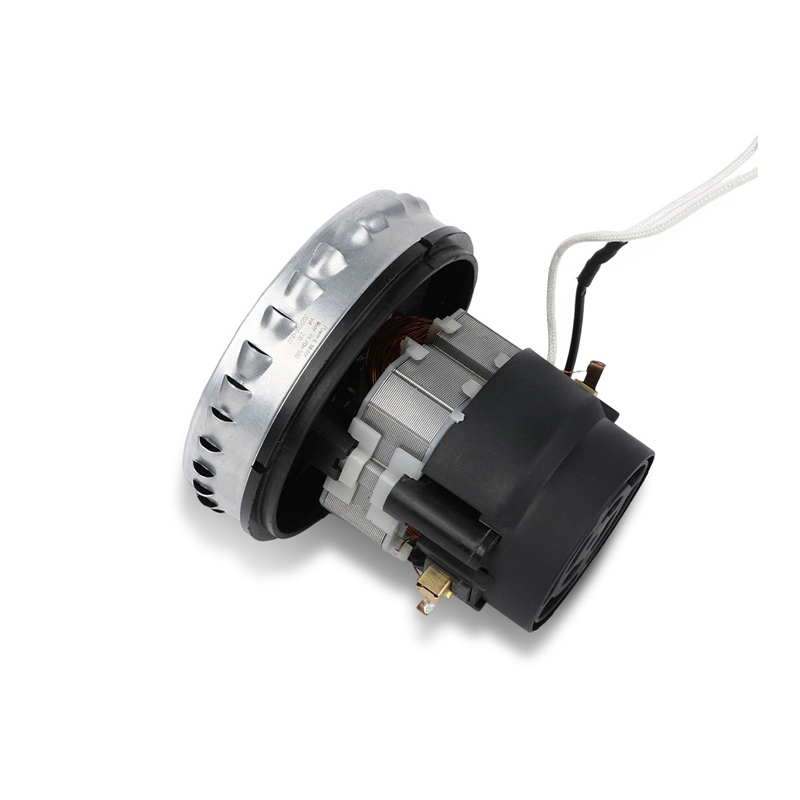

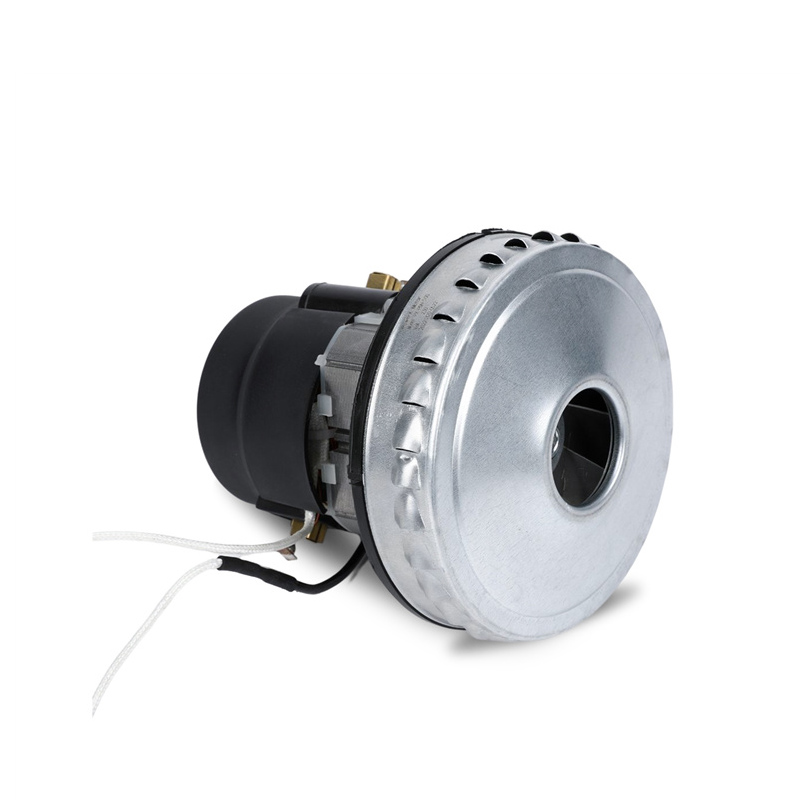

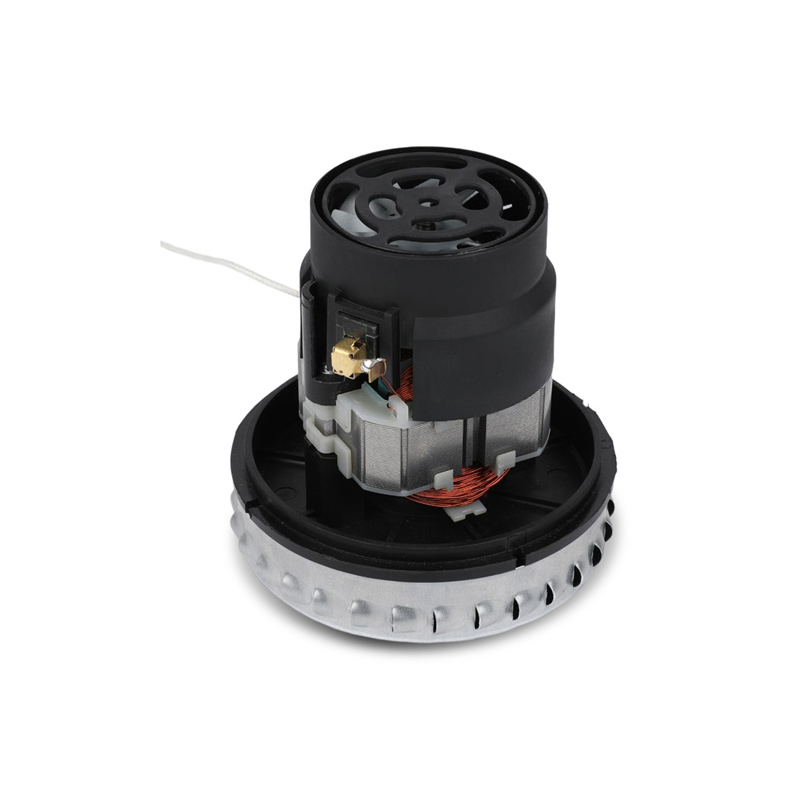

109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor

  • Small wet and dry motor, double impeller, air inlet flat design, temperature rise down to 60K, available in 109.4mm and 135mm two sizes
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
  • 109mm AC Dry Wet Vacuum Cleaner Mechanical Equipment Motor
Message Form Contact Us

Product feature

  1. Model YH-PDH, universal vacuum motor, commonly used in dry vacuum cleaner and steam scrubber, diameter 109.4mm, height 112.5mm, household conventional voltage, 50Hz and 60Hz, power 500W 700W 1000W, maximum suction force 18kpa, maximum air volume 2.2M3/min, low noise, high efficiency 35%.
  2. Engineering grade plastic, not easy to old, light weight, reinforcing rib design, making the product more robust.

Product Specification

Patameters/Models

YH-PDH

Tolerance Value

Product diameter(mm)

109.4

/

Product height (mm )

112.5

/

Rated voltage(V)

100-240

/

Rated frequency(Hz)

50/60

/

Rated input power(W)

500-1000

+10% -10%

Max vacuum degree(KPa)

14.5-18

-5%

Max air flow(M3/min)

1.7-2.2

-8%

Temperature rise(K)

≤60

/

Noise(dB)

≤91

/

Spark

<Level 1

/

Class of insulation

A.B.E.F

/

Max efficiency

≥35%

-10%

Product drawing
